talend data integration project-commercial data management

Objective

Creation of a Data Integration System in a Data Warehouse

The project consisted of two distinct parts:

Part 1: Loading the ODS

In this phase, I set up a PostgreSQL database (COM_INGESTION_DB) and developed SQL scripts for schema creation, table creation, and data insertion. I carefully managed the ingestion process, ensuring seamless integration of flat files into the database using Talend’s powerful data integration capabilities. Key tasks included:

• Creating database schemas (VENTE_ODS and PARAMS_LOG).
• Configuring and executing SQL scripts for table creation and data insertion.
• Developing Talend jobs within the ICOMMERCE_REPORTING project for transforming and loading data into the operational data store (ODS).
• Implementing custom Java code for specialized data processing tasks.

  Part 2: Loading the DWH

  In this phase, I expanded the PostgreSQL database to include a data warehouse (VENTE_DWH) for advanced analytics and reporting purposes. Similar to Part 1, I developed SQL scripts for schema creation, table creation, and data manipulation. Within the Talend environment (ICOMMERCE_REPORTING), I designed Talend jobs to orchestrate the flow of data into the data warehouse (DWH), ensuring consistency and accuracy. Key tasks included:

• Setting up and executing SQL scripts for creating data warehouse tables and updating existing tables.
• Designing and implementing Talend jobs for data extraction, transformation, and loading (ETL) into the data warehouse.

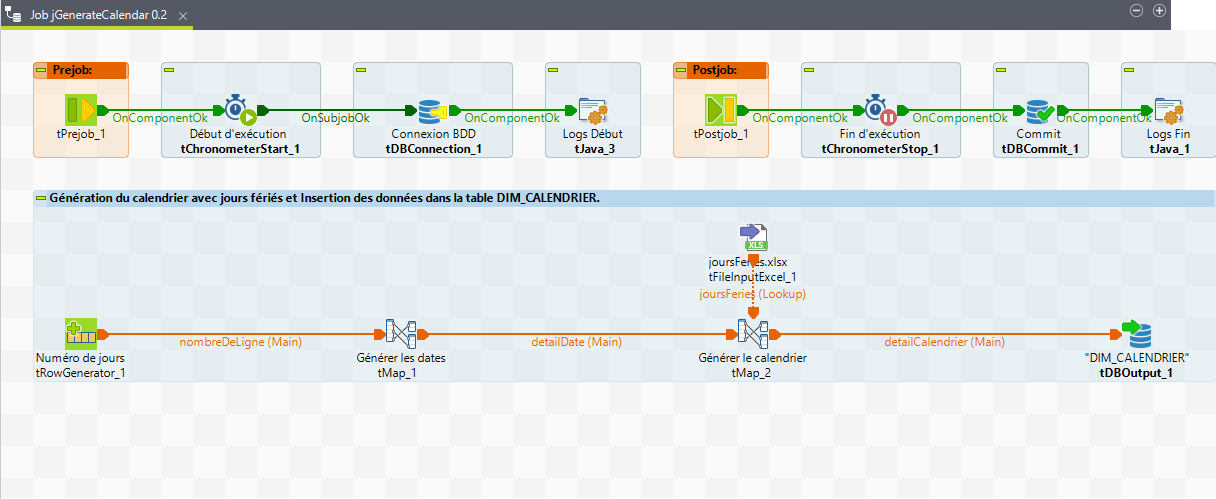

• Creating specialized Talend jobs (jGenerateCalendar.zip) to populate dimension tables with calendar data.

Data source

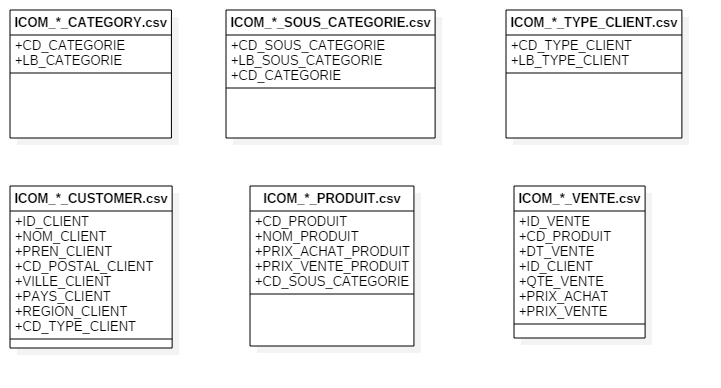

Six CSV files

ETL process

Extract

Extracting data from multiple sources (six CSV files)

Transform

• Formatting the data as expected
• Removing null data
• Eliminating duplicates
• Checking dependencies
• Verifying existing data

Load

Loading data into the target database

Tools

| Tool | Purpose | |:————:|:———————————-:| | PostgreSQL | managing ODS and QWH tables | | Talend | ETL process | | Github | Hosting the project documentation |

Development

Part 1

Step 1: Database

• Creation of the database COM_INGESTION_DB
• Creation of the schema ODS_vente_ODS
• Creation of the schema Params_Log

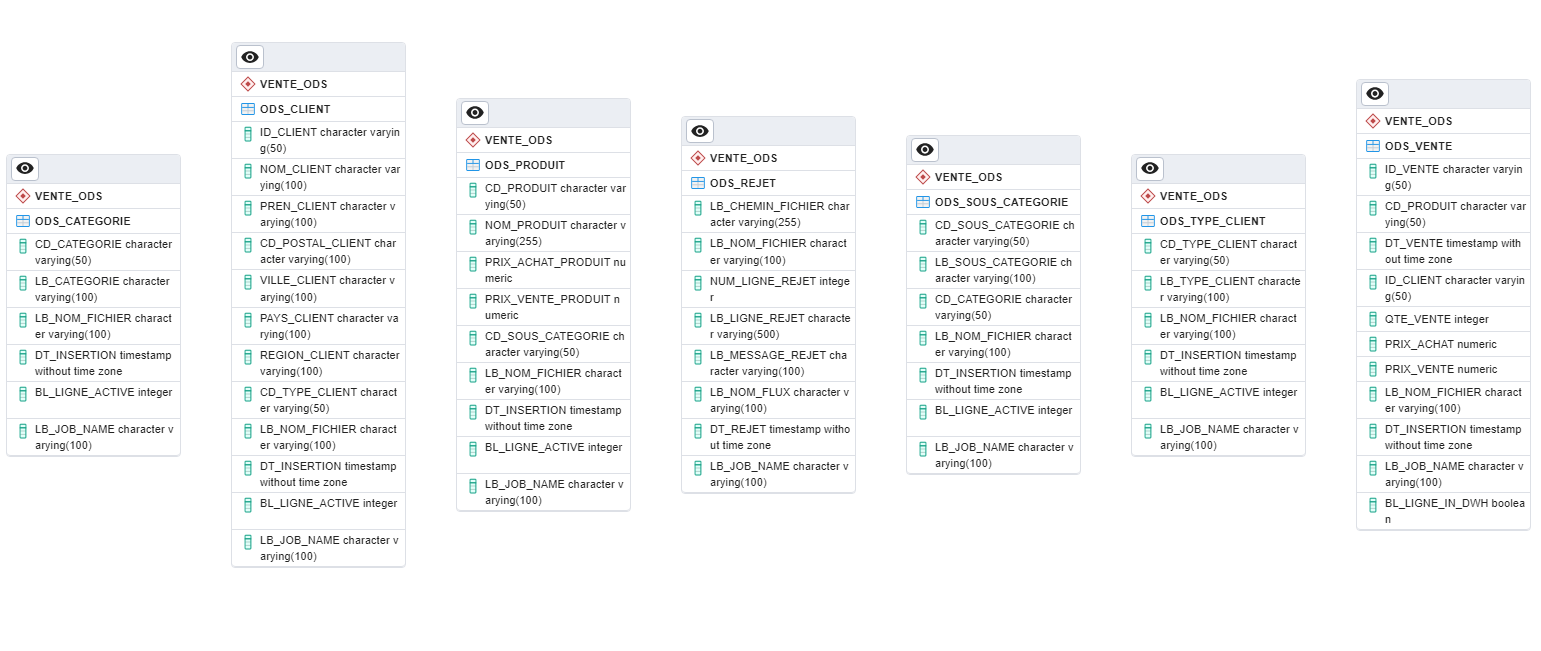

• Creation of the various ODS tables
• Creation of the Context table
• Insertion of data into the Context table

  Step 2

Creation of a directory containing the daily data

Step 3: Data Integration

• Creation of the Talend project ICOMMERCE_REPORTING
• Creation of context groups
• Configuration of implicit loading of context variables
• Creation of metadata: connection to the database
• Creation of generic schemas

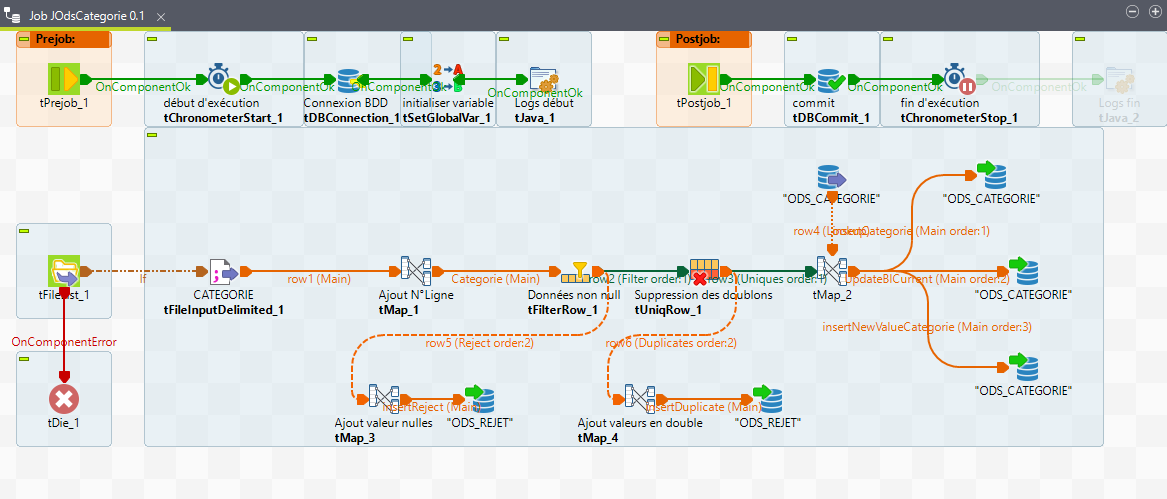

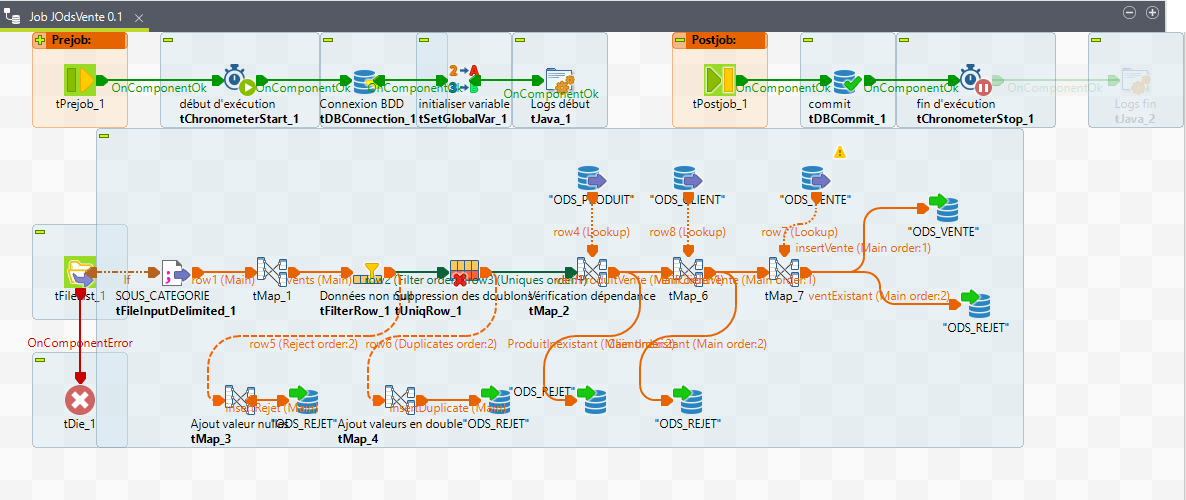

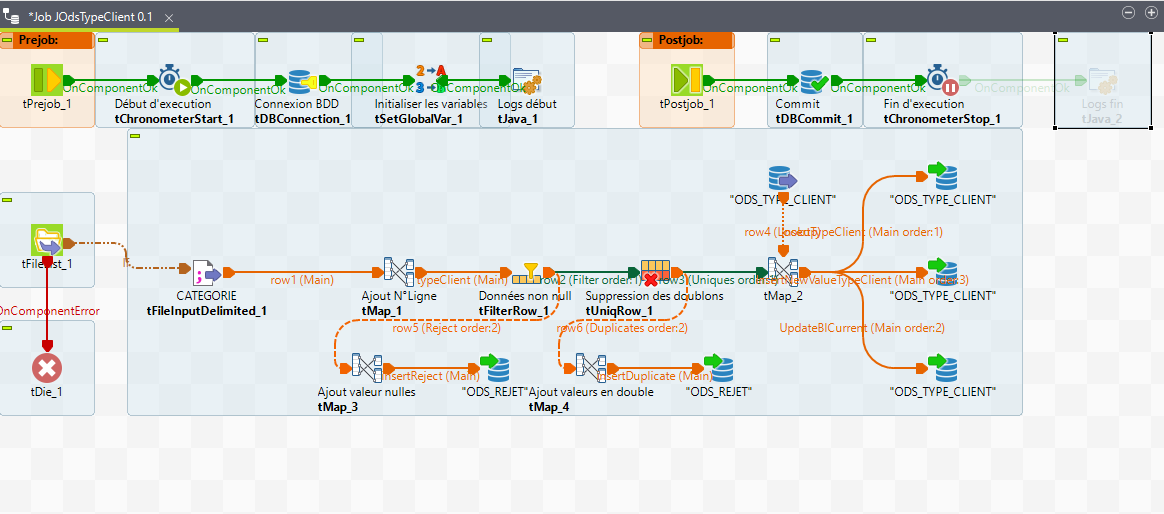

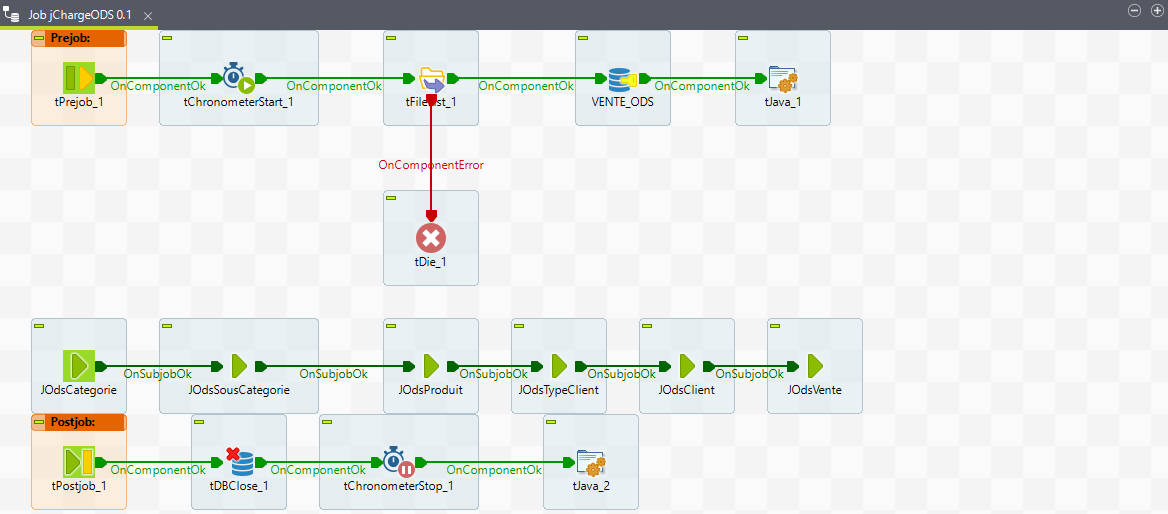

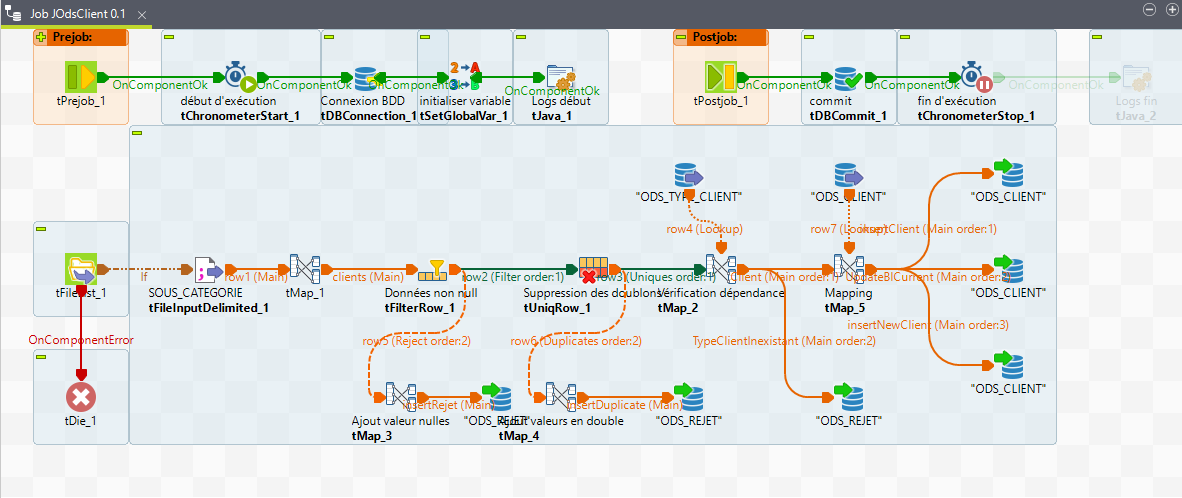

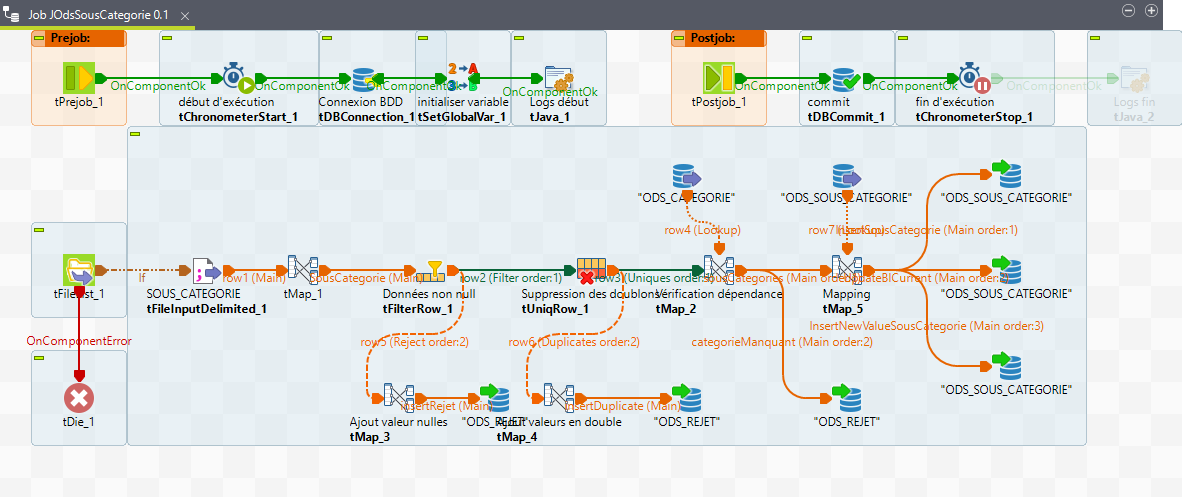

• Creation of various ODS jobs (data transformation and loading)











• Construction and scheduling of the main job execution

Part 2

Step 1: Database ==> PostgreSQL

• Connection to the database: COM_INGESTION_DB

• Execution of SQL scripts:

1. script_create_schema_dwh.sql: Creation of the schema VENTE_DWH

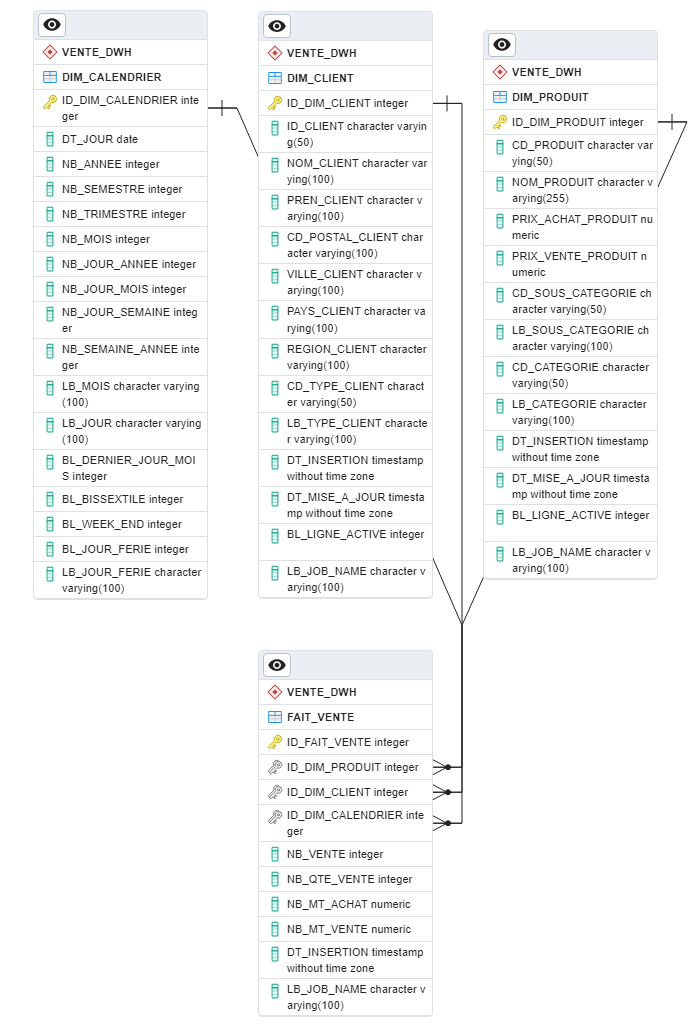

2. script_create_table_dwh.sql: Creation of the various DWH tables

3. script_create_table_ods.sql: Updating the ODS_VENTE table

4. script_insert_context_variable.sql: Inserting data into the CONTEXT table

5. script_select_table_dwh.sql: This script selects the data inserted into the various tables

6. script_truncate_table_dwh.sql This script deletes the data present in the various DWH tables

Step 2: Data Integration Process ==> Talend

1. Opening the Talend project: ICOMMERCE_REPORTING
2. Creating the context group DWH
3. Creating metadata: Connecting to the database

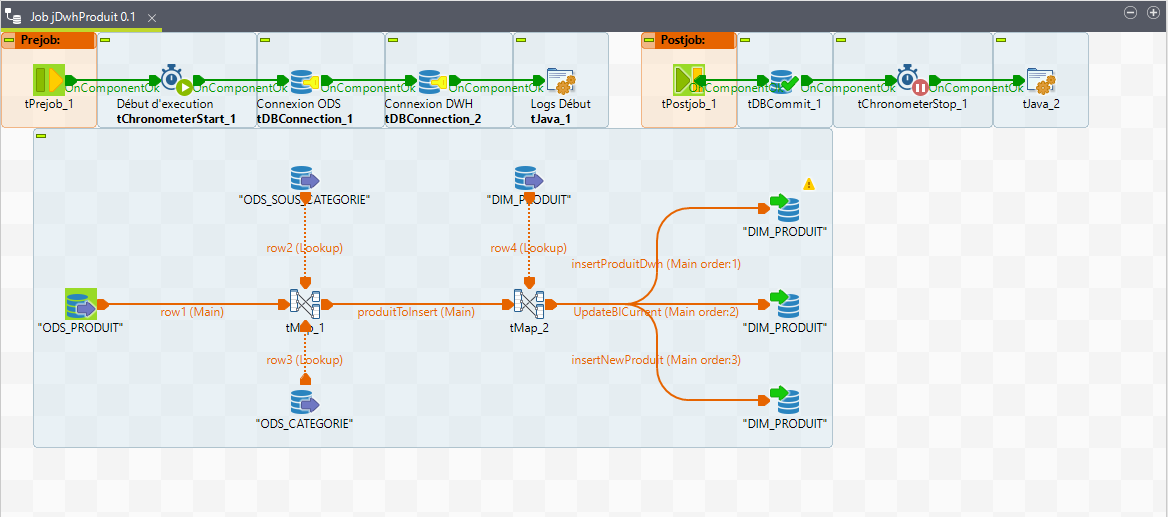

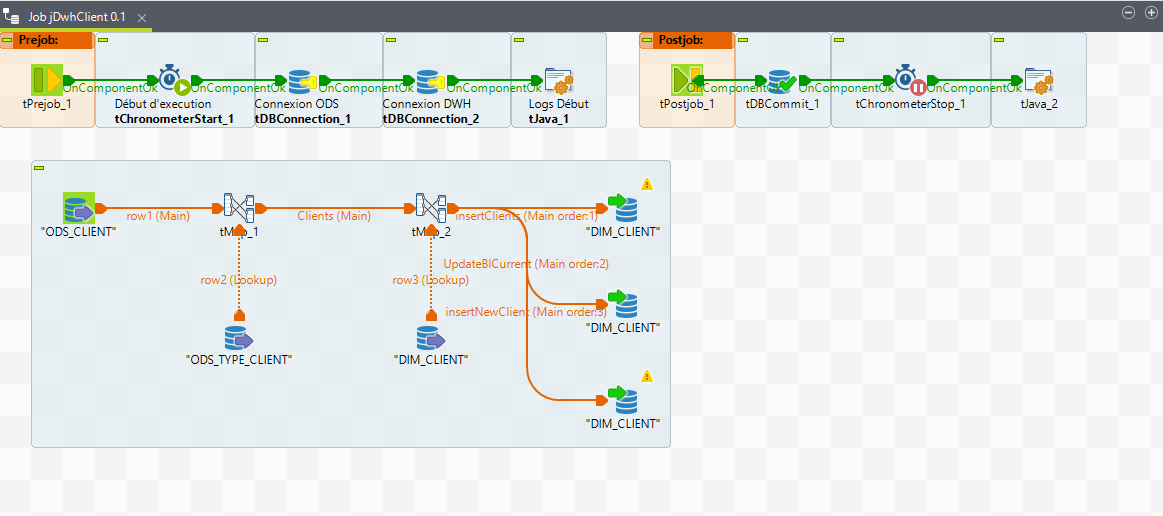

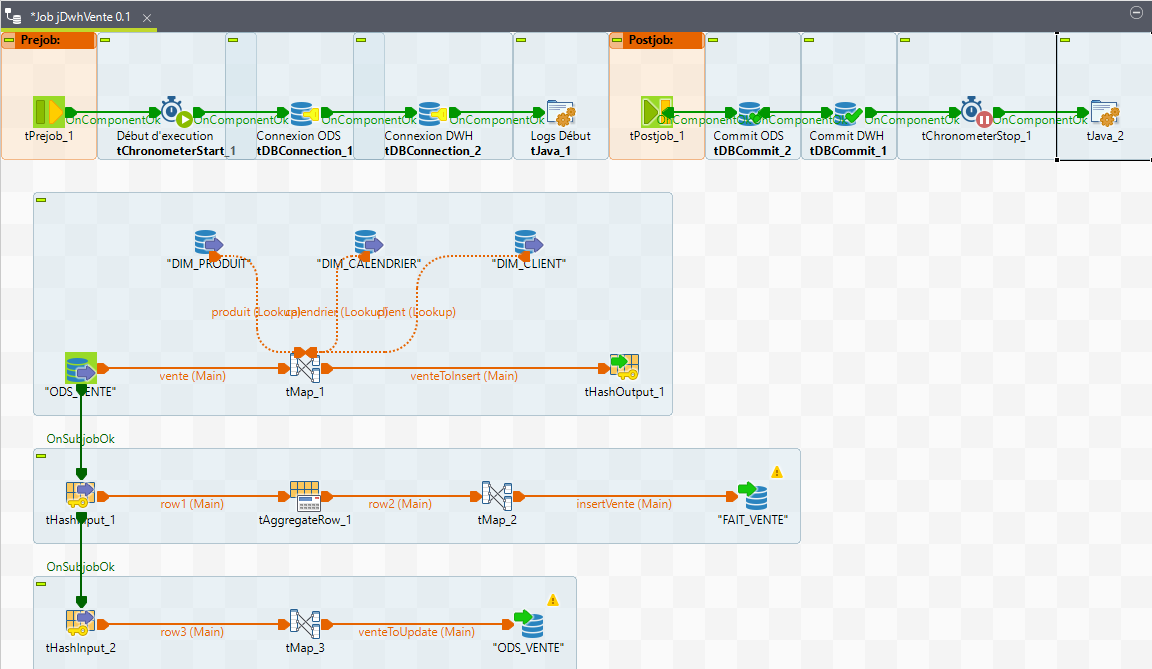

4. Creating the DWH jobs

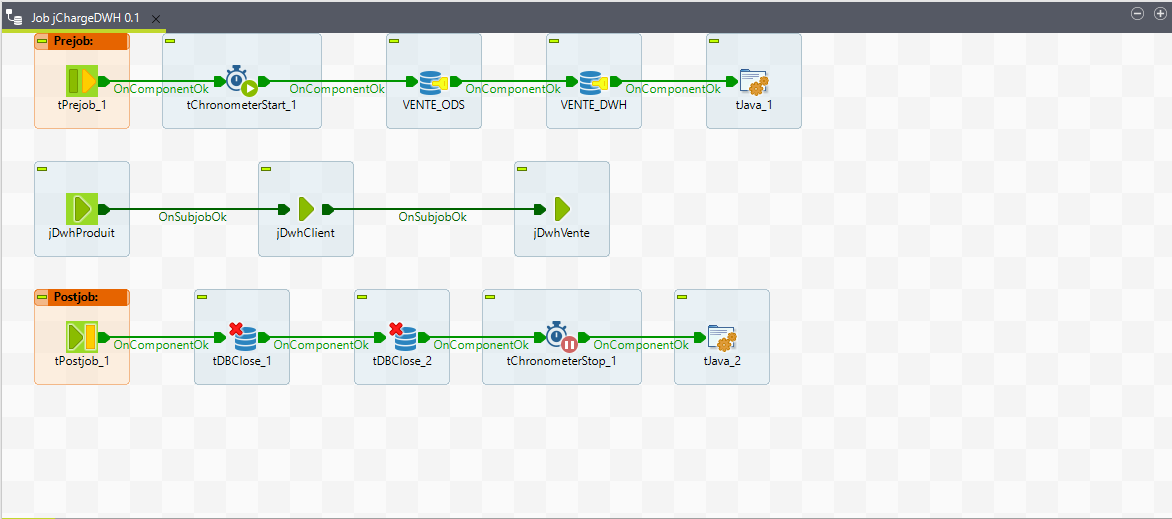

5. Creating the main job

Part 3: Building and scheduling the automatic execution of the main job (Job for populating the Operational Data Store and the Data Warehouse)
